Two-stop silicone (peroxide-cured) tubing, 2.29 mm ID, 6/pack Reviews
Other Picture

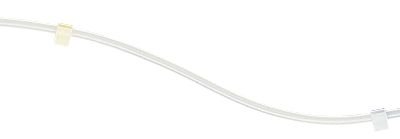

Two-stop silicone (peroxide-cured) tubing, 2.29 mm ID, 6/pack Feature
- Ismatec Two-Stopped Color-Coded Autoanalysis Tubing
- Product Type: Two-stop Ismatec pump tubing
- Tubing formulation: Silicone (peroxide cured)
- Tubing ID (mm): 2.29
- Dimensions (" L): 16
- Tubes per pack: 6
- Color coded stops: Purple/black
- Flow ranges with variable-speed drives (2-240 rpm, 8-roller (mL/min)): 0.51 to 120
- Flow ranges with variable-speed drives (0-11rpm, 8-roller (mL/min)): 0.062 to 6.2
- Flow ranges with variable-speed drives (0-45 rpm, 8-roller (mL/min)): 0.25 to 25
- Manufacturer number: SC0103/ 2 STOP
- Part Number: AO-07616-44
- Package Quantity: PACKAGE of 6
To complete your ISMATEC pumping system, order two-stop color-coded and extension tubing below. Tubing comes in various formulations for almost any pumping application. The stops on the two-stop tubing are color-coded according to tubing ID. Use this tubing with any of the ISMATEC standard cartridge pumps and pump heads. Cartridges withstand pressures up to 45 psi. Some sizes of two-stop TYGON tubing are available with preattached Luer lock fittings for added convenience (call for information on Luer lock fittings for other tubing sizes). To Order Two-Stop Tubing: Select the type of tubing and the flow range you require from the tables below. 1) In the "Two-Stop Tubing Size and Flow Rate" table, find the color-coded column to match your pump rpm and number of rollers. 2) From the "Tubing Material" table, choose Tygon®, silicone, Viton®, or PharMed® tubing to determine your catalog number prefix. 3) Determine the catalog number suffix corresponding to the tubing size for your pump rpm, number of rollers, and required flow rate. 4) Combine the catalog number prefix with the catalog number suffix to form a complete catalog number for the tubing. 5) If required, order extension tubing to match the material and ID of your selected two-stop tubing. Connect two-stop and extension tubing by using hose barbs or splicing them (see facing page for details). For example: To order tubing for a 0-11.0 rpm, 8-roller drive with a desired flow of 0.006-0.39 mL/min using TYGON, choose tubing P-95601-18. (Compatible extension tubing is P-95609-18).
